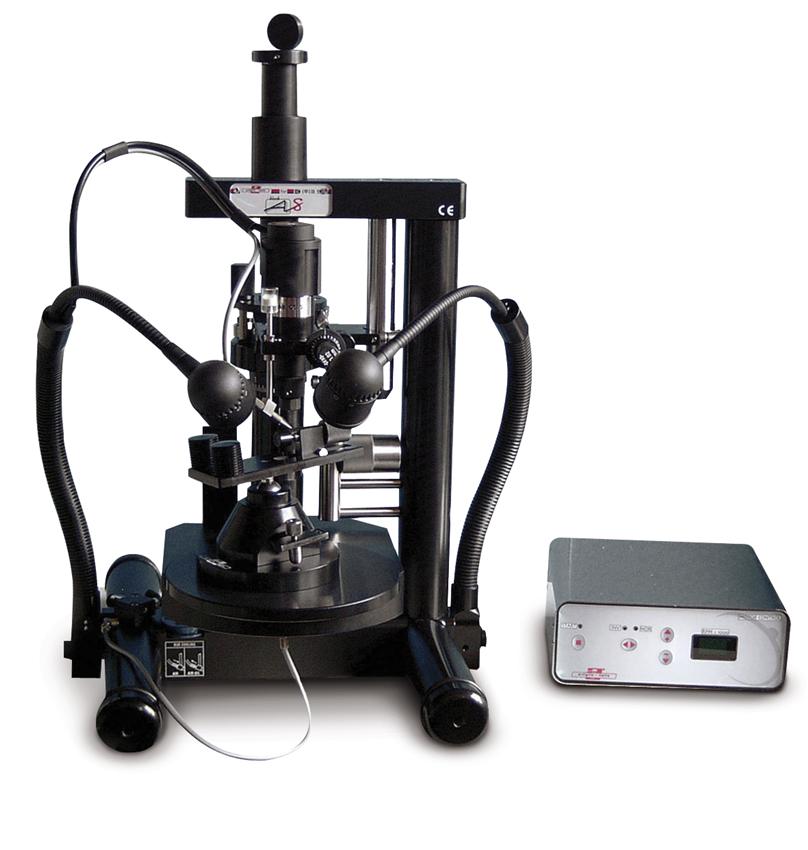

A8 unit Superfresart

Excellence Line

Very high-precision milling machine able to satisfy both daily exigencies of a dental laboratory and any other kind of requirement. Thanks to the high mass of its slide-table, the machine allows the technician to reduce the operating effort. The exclusive motor assembly realized by Artiglio together with the micrometric measuring system assure more precise walls and a quicker finishing and polishing of the surfaces. It is furnished with DC powered chuck (with complete porta-chuck nuts ø 2,35 and 3 mm), digital electronic feeder with adjustable speed, triple pedal, lockable model holder, spotlight and mandrel for attachments assembly and surveying.

Why choose A8

For the possibility to own the extreme evolution of FRESART’s mechanics.

• To elevate the quality standard of the work thanks to excellent performances.





• To save time and money in the working of any kind of material.

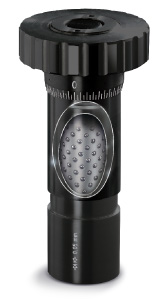

DC powered chuck PUSH-LOCK U

Specific motor assembly, innovative and exclusive, with a new bur locking system and pre-loaded bearings (maximum eccentricity 10 μm). The result is more precise walls and a quicker finishing and polishing of the surfaces.

Movable arm on high-precision ball slide –table LARGE MASS (LARGE MASS movement slidetable)

Supporting element of the powered chuck with high mass that reduces the technician effort and the operating time improving the surface of milled walls.





Working plane with vacuum locking system

Surface where to lay the model holder before starting the working. It is quicker and more practical to fix and release the model holder without using any manual control.



Adjustable pneumatic suspension

Adjusts the resistance of the vertical slide to follow the exigencies of the working. It can be used “high” for metal milling and “light” for wax milling or for milling on precious alloys.



Pedal for vacuum locking of the model holder

It allows the locking and the sliding of the model holder on the working plane via foot control.



Draining MULTI-PIN plane, suitable for wax milling.



Incorporated micrometric assembly

Assembly integrated in the mobile arm including stops, precision screws and operating knobs. It permits a precise construction, measurable on vertical and transversal axis of the machine, of milled elements, such as channels, chamfers, holes, interlocks and attachments

Adjustable supporting table

Support of the working plane with high excursion that allows working also on high models.



Mechanical model holder AR1/M
Very big model holder granting an excellent working stability.
It allows to fix and lock many different kinds of models and to work directly on the model.



Double pneumatic-electrical pedal
Device allowing an easy start and stop of the micro motor and the bur cooling.

Separate digital electronic feeder
It supplies the electrical feeding to the machine and is equipped with all regulation and control devices. Easily removable and multi position for several uses.


Double integrated spotlight Adjustable lighting system of the machine that improves the tri-dimensional perspective of the model without shadows. Being not reflective it is less tiring.








• PUSH-LOCK U powered chuck
• Digital electronic feeder
• Double spotlight
• Pneumatic-electrical double pedal
• Pedal for vacuum locking of the model holder
• Plane with vacuum locking system by pedal
• Air-oil cooling assembly
• Mechanical model holder
• Sliding disc
• MULTI-PIN draining sliding plate
• Complete porta-chuck nut ø 2,35 mm and 3 mm
• Ergonomic handgrip
• Universal mandrel
• Milling lubricating oil




A8 unit Superfresart - Excellence Line

Worked materials
Wax ***
Resin ****
Precious alloys *****
Non precious alloys *****
Titanium *****
Implants *****
Zirconia -
Technical data
Machine dimensions (mm) 350x400x550
Machine Weight (kg) 27
Dimensions electronic feeder (mm) 195x190x80
Weight electronic feeder (kg) 4
Motor
Speed (rpm) 1.000÷20.000
Pressure (bar) 3÷4
Air consumption (l/min) 40
