ARTRigid attachmentIt is defined “the attachment par excellence” thanks to its elevated technical content that allows to reach the best compromise between functionality and essentialness. It doesn’t exist, in fact, a more efficient and simpler system than Art attachment. Restorations made with Art attachments applied without any milled arm have amazingly exceeded a duration of beyond 15 years. The only dove-tailed dental attachment international.
 ♦ MICRO: "HIGH and LONG" attachments with an exceptional resistance endowment. We recommend their use every time there is enough space  ♦ SUPERMICRO: "LOW and LONG" attachment which can be applicated in almost all prosthetic cases. It is particularly indicated for those with a low bite, where there is enough space avaliable to use MICRO version  ♦ CORTO: "LOW and SHORT" attachment which provides a satisfactory solution for prosthetic cases where there is very limited space (3-4, 4-5)
  ⇒ Two different burnout plastic matrices: standard and strengthened  ⇒ Four extra oversized males for greater retention in cases of matrix worn  ⇒ It can be activated ⇒ Interchangeability of matrices and patrices ⇒Male easily changed without any accessory ⇒Precision machined ⇒Can be transformed in resilient Indications
|
Features |
|
|

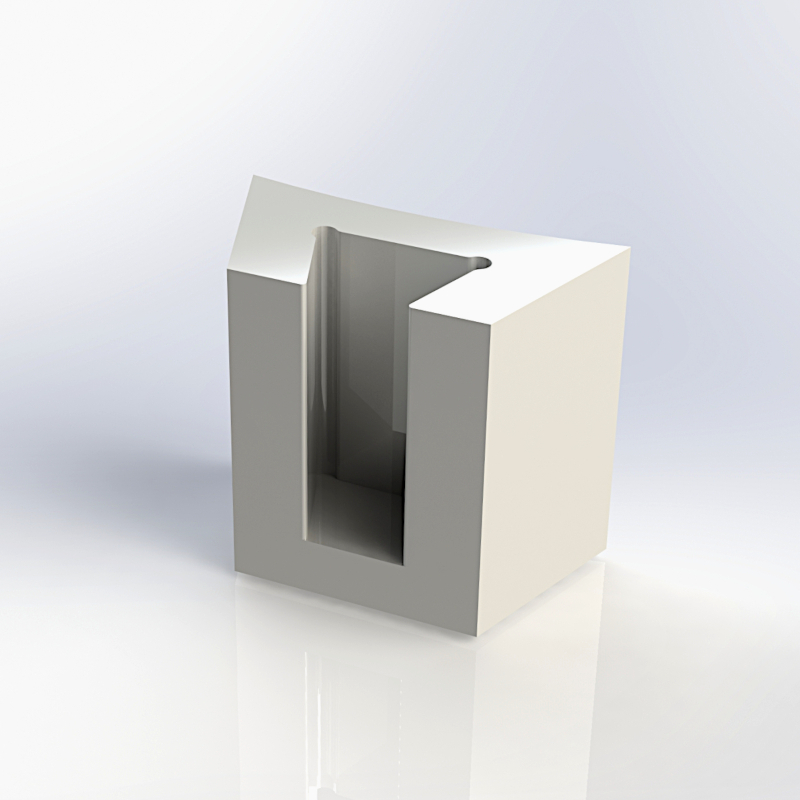

Matrix |
Patrix |
|
• Two shapes: free travel • Four materials: resin alloy, ceramic alloy,
|
• Three components: male • Three different versions: MICRO • Two materials: precious alloy and stainless steel • The only one attachment available with oversized spare parts |
or closed end
, sheath
,
,
e CORTO
.jpg){kind=small}
and 105°
Usage advices |
|
| Indications | Fixation |
|
► Lower and upper partial dentures |
⇒ Matrix: soldered or cast-on or cast with precious and non precious alloys |
|
|
|
With metal matrix
With plastic matrix| Prodotto | Female height (mm) | Female width (mm) | Guide lenght (mm) | Male height (mm) | Male width (mm) | Total lenght (mm) | |
 |
ART MICRO 90° (11)1012 stainless steel - resin alloy |
3,8 | 3,5 | 2,7 | 2,0 | 2,0 | 9,1 |
|
ART MICRO 90° (11)1012FR stainless steel - resin alloy STRENGTHENED |
3,8 | 4,0 | 2,7 | 2,0 | 2,0 | 9,1 |
|
ART MICRO 90° (11)1012SFU stainless steel - ceramic alloy |
3,8 | 3,5 | 2,7 | 2,0 | 2,0 | 9,1 |
|
ART MICRO 90° (11)1013 stainless steel |
3,7 | 3,5 | 2,7 | 2,0 | 2,0 | 9,1 |
 |
ART MICRO 105° (11)1013P stainless steel - burnout plastic |
3,5 | 2,6 | 2,7 | 2,0 |
2,0 | 8,8 |
 |
ART MICRO 105° (11)1112 stainless steel - resin alloy |
3,8 | 3,5 | 2,7 | 2,0 |
2,0 | 9,4 |
|
ART MICRO 105° (11)1112FR stainless steel - resin alloy STRENGTHENED |
3,8 | 4,0 | 2,7 | 2,0 |
2,0 | 9,4 |
|
ART MICRO 105° (11)1112SFU stainless steel - ceramic alloy |
3,8 | 3,5 | 2,7 | 2,0 |
2,0 | 9,4 |
|
ART MICRO 105° (11)1113 stainless steel |
3,7 | 3,5 | 2,7 | 2,0 |
2,0 | 9,4 |
|
ART MICRO 105° (11)1113FRP stainless steel - burnout plastic STRENGTHENED |
4,0 | 4,3 | 2,7 | 2,0 |
2,0 | 9,6 |
|
ART MICRO 105° (11)1113P stainless steel - burnout plastic |
3,5 | 2,6 | 2,7 | 2,0 |
2,0 | 9,1 |
 |
ART SUPERMICRO 90° (11)2012 stainless steel - resin alloy |
3,8 | 3,5 | 2,7 | 1,4 | 2,0 | 9,1 |
|
ART SUPERMICRO 90° (11)2012FR stainless steel - resin alloy STRENGTHENED |
3,8 | 4,0 | 2,7 | 1,4 | 2,0 | 9,1 |
|
ART SUPERMICRO 90° (11)2012SFU stainles steel - ceramic alloy |
3,8 | 3,5 | 2,7 | 1,4 | 2,0 | 9,1 |
 |
ART SUPERMICRO 105° (11)2112 stainless steel - resin alloy |
3,8 | 3,5 | 2,6 | 1,4 | 2,0 | 9,1 |
|
ART SUPERMICRO 105° (11)2112FR stainless steel - resin alloy STRENGTHENED |
3,8 | 4,0 | 2,6 | 1,4 | 2,0 | 9,1 |
|
ART SUPERMICRO 105° (11)2112SFU stainless steel - ceramic alloy |
3,8 | 3,5 | 2,6 | 1,4 | 2,0 | 9,1 |
 |
ART CORTO 90° (11)5012 stainless steel - resin alloy |
3,8 | 3,5 | 2,7 | 1,6 | 2,0 | 7,1 |
 |
ART CORTO 105° (11)5112 stainless steel - resin alloy |
3,8 | 3,5 | 2,6 | 1,6 | 2,0 | 7,3 |
