Super A4

Premium Line

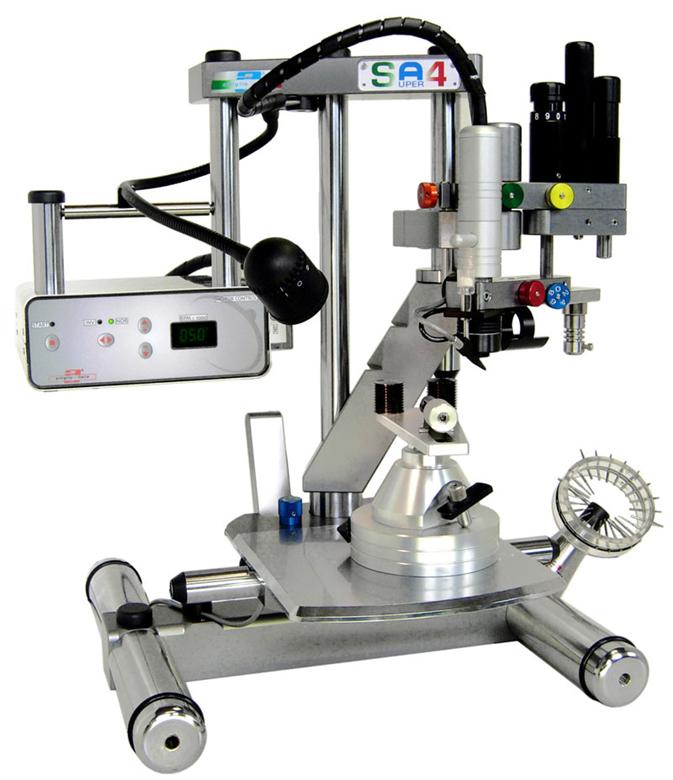

The new design of the Super A4 movable arm joins an extraordinary feeling to an aggressiveness of cut without equal. Provided with air-oil jet on the bur, as Artiglio’s tradition, and switch-off magnets model holder, Super A4 is not only an universal milling machine but also a customized instrument to guarantee the maximum comfort of use. A led light (optional) with wide glass ring focus the brightness on the working area. Super A4, the result of a complete but essential innovative design. Furnished with electrical micro motor (with complete porta-chuck nuts ø 2,35 – 3 – 1,6 mm), digital electronic feeder with adjustable speed, electrical pedal, lockable model holder, spotlight and magnetic universal mandrel for attachments assembly and surveying.

The standard Super A4 is Grey while in the version Comfort Pack is available with the column and the arms of the followings colours: Orange, Blue, Red and Green.
Super A4 is also available in the exclusive version White.


Why choose Super A4

  • To look forward and to have an upgradable milling machine.
  • To perform very easily all workings required by the prosthetic guided implant surgery.
  • To work tirelessly thanks to the very ergonomic working position.

Allowed techniques
  • free-hand milling
  • micrometric milling to realize holes, channels, chamfers and interlocks on wax, resin, alloys, abutments
  • micrometric drilling
  • surgical guides for prosthetic guided implant surgery
  • attachments assembly and positioning
  • surveying


Vertical micrometric adjustment

Device allowing the micrometric control of the vertical movement.



Drill sensitive lever

To easily carry out all drilling procedures.



Transversal micrometric adjustment

To realize channels and chamfers micrometrically controlled.





Adjustable supporting table

Support of the working plane with high excursion that allows working also on high models.

Micromotor with quick bur release

Motor assembly (with medium eccentricity 0.02 mm) that allows the release and the locking of the bur in a very short time (about 5 seconds), reducing the working time.

Suspended feeder

It supplies the electrical feeding to the machine and is equipped with all regulation and control devices. In this way the feeder takes a minimal space on the bench.

AR1/MMD magnetic model hoder

Model holder privided with switch-off magnets allowing the locking of the base on the working plane of the machine.



Magnetic mandrel for attachments assembly and surveying

Accessory to be magnetically fixed to the movable arm to make the attachments assembly and the surveying simultaneous and precise.


Double pneumatic-electrical pedal
Device allowing an easy start and stop of the micro motor and the bur cooling.



Integrated spotlight Adjustable lighting system of the machine that improves the tri-dimensional perspective of the model without shadows. Being not reflective it is less tiring.



Bur cooling circuit
Pneumatic system that sends air or nebulized air-oil to the bur, during the wax and metal milling, allowing a quicker working, more polished walls and less consumption of burs.




• Pneumatic- electrical double pedal
• Air-oil cooling assembly
• Sliding disc
• Locking plane
• Milling lubricating oil
• Complete porta-chuck nut ø 2,35 mm
• Complete porta-chuck nut ø 3 mm
• Collet adapter for ø 1,6 mm burs
• Ergonomic handgrip
• Accessories holder
• Slideways oil
Super A4





Comfort  Pack

Arms supports "Support Colour"
Adjustable arm supports to be fixed to the basement of the machine to allow a relaxed working.
Crown led
Integrated light equipment in the milling spindle of a wide diameter and calibrated intensity. In this way you will have a right lighting of the work at any time.
Burs holder Ring
Accessory allowing to handy have all the drills required for the working to be done.

Ergonomic handgrip Finger
For a tireless long working.

Further optionals

Set SA6/SA8
The bearing structure of SA4 is arranged for the upgrade to SA6 or SA8 in order to achieve the performances of the Excellence line milling machines.

Super A4 STONE set
Set of accessories that can be assembled to the machine for the finishing of primary elements made of ceramic materials (sintered zirconia, zirconia implants, alumina, metal free all-ceramic).
A turbine with water cooling, to avoid micro-fissures in the ceramic materials, and an innovative water collect system allow to work safely protecting all the elements of the machine.

Super A4 - Premium Line

Worked materials
Resin ***
Precious alloys ****
Non precious alloys *****
Titanium *****
Implants *****
Zirconia (with optional STONE set) ***
Technical data
Machine dimensions (mm) 400x430x510(590)
Dimensions electronic feeder (mm) 195x190x80
Machine Weight (kg) 31 included feeder
Weight electronic feeder (kg) 4
Vertical range H max/ h min / stroke (mm) 305(245)/135/38(28)
Micro motor
Speed (rpm) 1.500÷27.000
Pressure (bar) 3÷4
Air consumption (l/min) 40
