ART

Rigid attachment


It is defined “the attachment par excellence” thanks to its elevated technical content that allows to reach the best compromise between functionality and essentialness. It doesn’t exist, in fact, a more efficient and simpler system than Art attachment. Restorations made with Art attachments applied without any milled arm have amazingly exceeded a duration of beyond 15 years.
The only dove-tailed dental attachment international.

Available versions



♦  MICRO: "HIGH and LONG" attachments with an exceptional resistance endowment. We recommend their use every time there is enough space


♦  SUPERMICRO: "LOW and LONG" attachment which can be applicated in almost all prosthetic cases. It is particularly indicated for those with a low bite, where there is enough space avaliable to use MICRO version

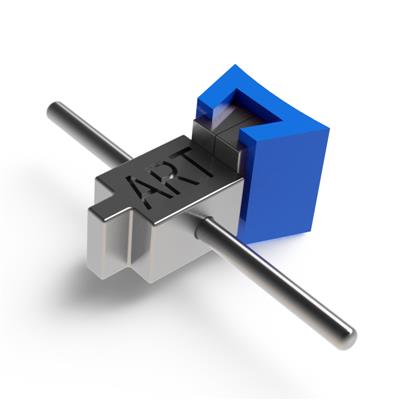

♦ CORTO: "LOW and SHORT" attachment which provides a satisfactory solution for prosthetic cases where there is very limited space (3-4, 4-5)


 Benefits

 ⇒ Two different burnout plastic matrices: standard and strengthened
           ⇒ Four extra oversized males for greater retention in cases of matrix worn

     ⇒ It can be activated

                                  ⇒ Interchangeability of matrices and patrices
                                  ⇒Male easily changed without any accessory
                                  ⇒Precision machined
                                  ⇒Can be transformed in resilient


Indications
  • Kennedy's classes I and IV
  • Lower and upper partial version
  • Free-end and/or bounded restorations
  • Unilateral and bilateral dentures

Features

Matrix

 Patrix

• Two shapes: free travel  or closed end


• Four materials: resin alloy, ceramic alloy,
   stainless steel, non-residual burnout plastic

• Universal for all patrix versions


• Available also strengthened

• Three components: male , sheath ,
                                    pin


• Three different versions:  MICRO ,
   SUPERMICRO  e CORTO


• Two materials: precious alloy and stainless steel

• Two inclinations: 90°  and  105°


• The only one attachment available with oversized spare parts


Usage advices
Indications Fixation

► Lower and upper partial dentures

► Free-end and/or bounded restorations

► Unilateral and bilateral dentures

⇒ Matrix: soldered or cast-on or cast with precious and non precious alloys

⇒ Patrix: soldered to removable partila dentures with precious and non-precious alloys


 With metal matrix

  1. Art matrix mounted in its mandrel
  2. Positioning of Art matrix
  3. Art matrix right placed
  4. Art matrix soldered
  5. Inserting of Art patrix
  6. Gingival room
  7. Insertion of removable denture
  8. Patrix fixation with resin into the framework

 With plastic matrix


  1. Positioning of strengthened and standard plastic matrix
  2. Art matrix of standard plastic waxed to the crown
  3. Art matrix cast as part of the crown
  4. Art attachment in place
Prodotto Female height (mm) Female width (mm) Guide lenght (mm) Male height (mm) Male width (mm) Total lenght (mm)
ART MICRO 105° (11)1013P
stainless steel - burnout plastic		 3,5 2,6 2,7

2,0

 2,0

8,8

ART MICRO 105° (11)1113FRP
stainless steel - burnout plastic STRENGTHENED		 4,0  4,3 2,7

2,0

 2,0

9,6

ART MICRO 105° (11)1113P
stainless steel - burnout plastic		 3,5 2,6 2,7

2,0

 2,0

9,1
