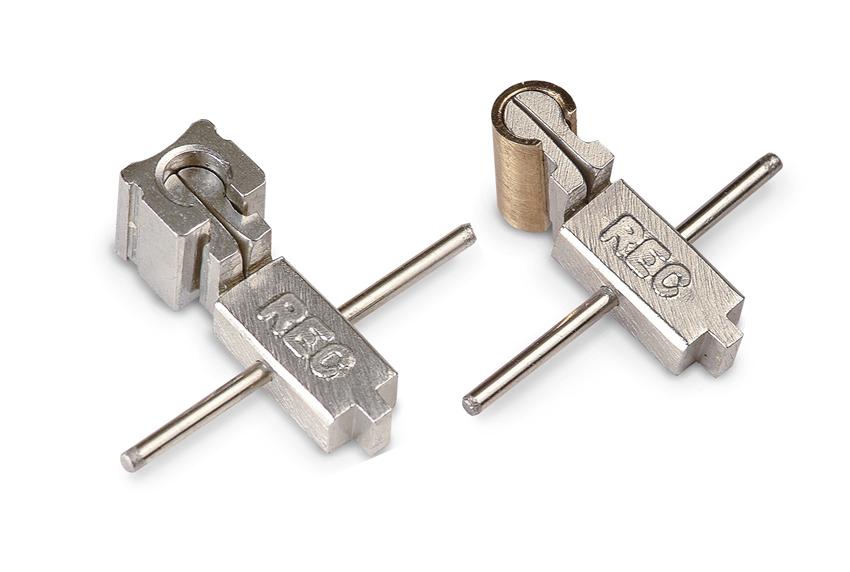

REC

Rigid attachment


The cylindrical connection of Rec attachments grants the optimal “softness” of insertion and removal limiting shocks provoked to the pillar teeth. Its shape, in a wide range of dimensions and inclinations, allows a compensation of a potential inaccuracy of fit. Matrices of different versions permit the choice of all fixation techniques nowadays known.

The easiest cylindrical dental attachment international  always in stock.

Available versions


♦  MICRO: "HIGH and LONG" attachments with an exceptional resistance endowment. We recommend their use every time there is enough space


♦  SUPERMICRO: "LOW and LONG" attachment which can be applicated in almost all prosthetic cases. It is particularly indicated for those with a low bite, where there is enough space avaliable to use MICRO version

♦ CORTO: "LOW and SHORT" attachment which provides a satisfactory solution for prosthetic cases where there is very limited space (3-4, 4-5)


Benefits
⇒ Intracoronal matrix available also in non-residual burnout plastic
⇒Extracoronal matrix of high dimension to grant an high fixation
⇒Easy insertion of the prosthesis
⇒It can be activated
⇒Male easily changed
⇒Matrix can be bonded avoiding problems of soldering and casting-on
⇒Matrix can be obtained by milling directly in the crown

Indications
  • Kennedy's classes I and IV
  • Lower and upper partial version
  • Free-end and/or bounded restorations
  • Unilateral and bilateral dentures

Features
Matrix Patrix
• Two versions: extracoronal  and intracoronal
• Two shapes: free travel     and
                           closed end

• Universal for all patrix versions

• Four materials: resin alloy, ceramic alloy, stainless steel,
                            non-residual burnout plastic

• Available also strengthened 		• Three components: male , sheath and
                                      pin
• Three different versions: MICRO ,
SUPERMICRO and CORTO

• Two materials: precious alloy and stainless steel

• Two inclinations: 90° and 105°



Usage advices
Indications Fixation
► Upper and lower dentures

► Dentures with bounded saddles and free-end sections

► Unilateral and bilateral dentures

⇒ MATRIX: soldered or cast-on or bonded or cast with precious
                      and non precious alloys.
                      Matrix can also be obtained by milling directly in the
                      crown.

⇒ PATRIX: soldered to removable partial denture with precious
                      and non-precious alloys

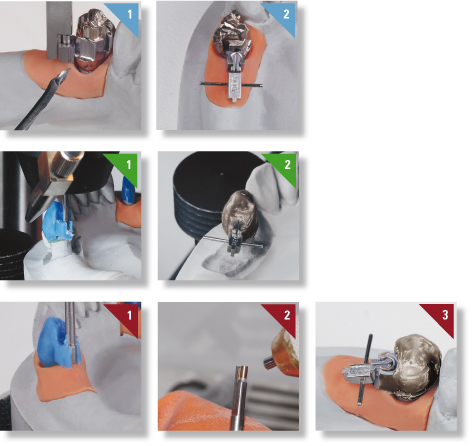

Working Procedures for REC attachments
Extracoronal metal matrix

  1. Rec matrix positioning
  2. Insertion of Rec patrix
 Intracoronal matrix obtained by milling

  1. Milling of Rec-intra matrix
  2. Insertion of the patrix in a Rec-intra milled matrix

 Intracoronal metal matrix to be bonded

  1. Moulding of the housing for Rec-intra matrix
  2. Sandblasting of Rec-intra matrix
  3. Insertion of the patrix in a Rec-intra matrix




Prodotto Female height (mm) Female width (mm) Guide lenght (mm) Male height (mm) Male width (mm) Total lenght (mm)
REC-intra MICRO 90° - 411013 P
stainless steel - burnout platic		 4,0  2,4  3,0  2,0  2,0  9,5
REC-intra MICRO 105° - 411113 P
stainless steel - burnout plastic		 4,0  2,4  3,0  2,0  2,0  9,6
REC-intra SUPERMICRO 90° - 412013 P
acciaio - plastica calcinabile		 4,0  2,4  2,7  1,4  2,0  9,5
REC-intra SUPERMICRO 105° - 412113 P
stainless steel - burnout plastic		 4,0  2,4  2,7  1,4  2,0  9,6
REC-intra CORTO 90° - 415013 P
stainless steel - burnout plastic		 4,0  2,4  2,7  1,6  2,0  7,8
REC-intra CORTO 105° - 415113 P
stainless steel - burnout plastic		 4,0  2,4  2,6  1,6  2,0  7,9
