Home page   |  mini-SKATE white MN0

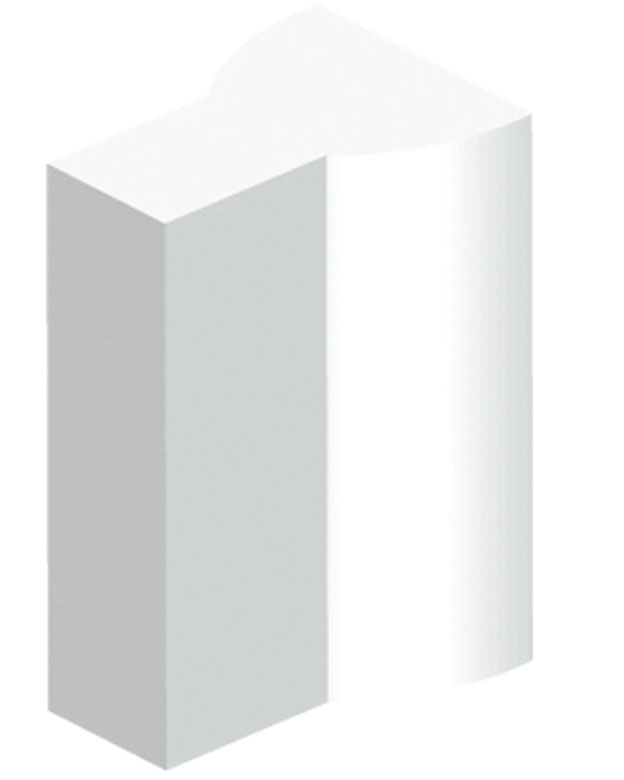

mini-SKATE white MN0

duplicating patrix


White male used:

-  for the duplication or;

- as zero retention when the attachment is not ask to be retentive thanks to the presence of other devices.

Sold in 4 pieces package.

FRICTION AREA OF THE OPPOSITE SURFACE

► parallel guidance surface of  4 mm height and 1 mm width made in the primary part (lingual milling, telescopic milling or milled bars)


mini-SKATE FIXATION

► fitting into the framework

REORDER CODE: 902605MN0-B4

Available versions
Patrix: male
► White: duplicating patrix, to be used for the duplication or as female with zero retention when the attachment is not ask to be
                 retentive thanks to the presence of other devices.

► Green: low friction, to be used as first retention

► Yellow: standard friction, to be used as second retention when the green patrix doesn’t give sufficient retention.

► Red: high friction, to be used as third retention when the yellow patrix doesn’t give sufficient retention.


















 Procedure operative per attacchi dentali SKATE
Combined prosthesis on abutment teeth

  1. Telescopic crown milled from wax

  2. Finishing of a telescopic crown in metal

  3. Positioning of Skate on the cap

  4. Waxing up

  5. Waxing up completed

  6. Removal of white component

  7. Waxing up of the framework connector

  8. Insertion of the framework in the cast connector

  9. Fitting of Skate into the framework

 Bar on implants

  1. Waxing up of a 0° bar on implants

  2. Application of a Skate on a bar cast and finished

  3. Fitting of Skate into the removable partial denture















mini-SKATE white MN0 - duplicating patrix

Height (mm) 4
Width (mm) 2
Length (mm) 3
