Home page | ART MICRO 105° (11)1013P

Description
Technical data

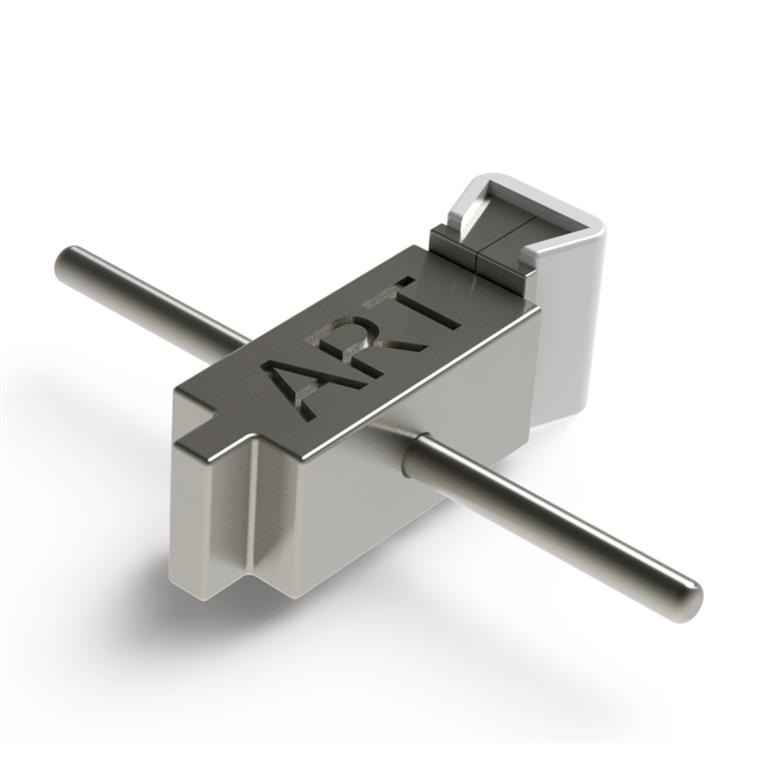

ART MICRO 105° (11)1013P

stainless steel - burnout plastic

Extracoronal rigid attachment having:

♦ matrix with closed end of non-residual burnout plastic;

♦ patrix 90° of stainless steel.

FIXATION
MATRIX: cast with non-precious alloys
PATRIX: soldered to the secondary part

REORDER CODE: 111013P

Available options
Matrix: female	Patrix: male, sheath and pin
►Two shapes: free travel and closed end ►Four materials: resin alloy, ceramic alloy, stainless steel, non-residual burnout plastic ►Available also strengthened	►Two materials: precious alloy and stainless steel ►Two inclinations: 90° and 105° ►Four oversized males for greater retention in cases of matrix worn

ART MICRO 105° (11)1013P - stainless steel - burnout plastic

Female height (mm)	3,5
Female width (mm)	2,6
Guide lenght (mm)	2,7
Male height (mm)	2,0
Male width (mm)	2,0
Total lenght (mm)	8,8
