Home page | REC-intra MICRO 105° - 411113 P

Description
Technical data

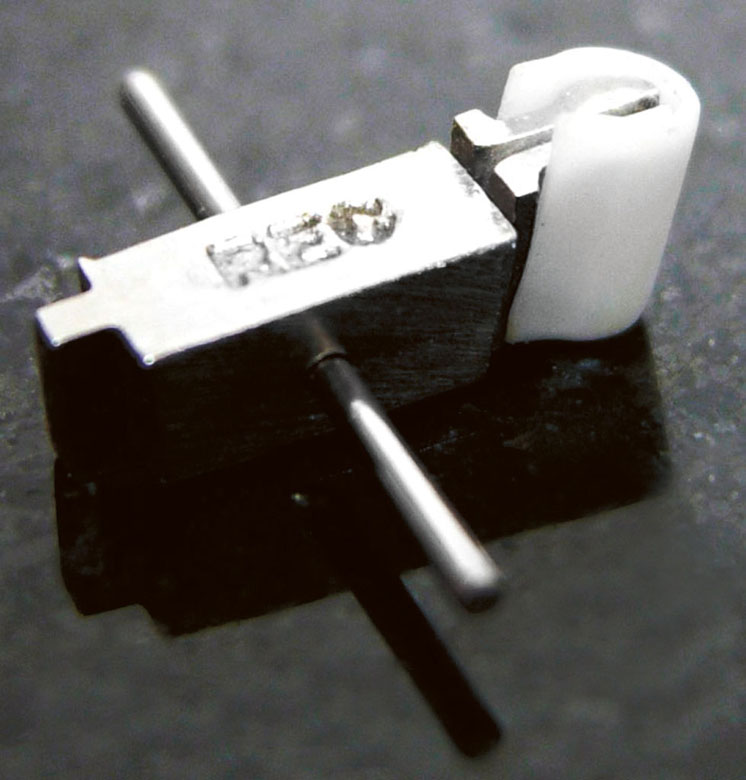

REC-intra MICRO 105° - 411113 P

stainless steel - burnout plastic

Intracoronal rigid attachment having:

♦ matrix with closed end of non-residual burnout plastic;

♦ patrix 105° of stainless steel.

FIXATION
MATRIX: cast with the primary part
PATRIX: soldered to the secondary part

REORDER CODE: 411113 P

Available options
Matrix: female	Patrix: male, sheath and pin
►Two versions: intracoronal and extracoronal ►Two shapes: free travel and closed end ►Four materials: resin alloy, ceramic alloy, stainless steel, non-residual burnout plastic ►Available also strengthened	►Two materials: precious alloy and stainless steel ►Two inclinations: 90° and 105°

REC-intra MICRO 105° - 411113 ... - stainless steel - burnout plastic

Female height (mm)	4,0
Female width (mm)	2,4
Guide lenght (mm)	3,0
Male height (mm)	2,0
Male width (mm)	2,0
Total lenght (mm)	9,6
